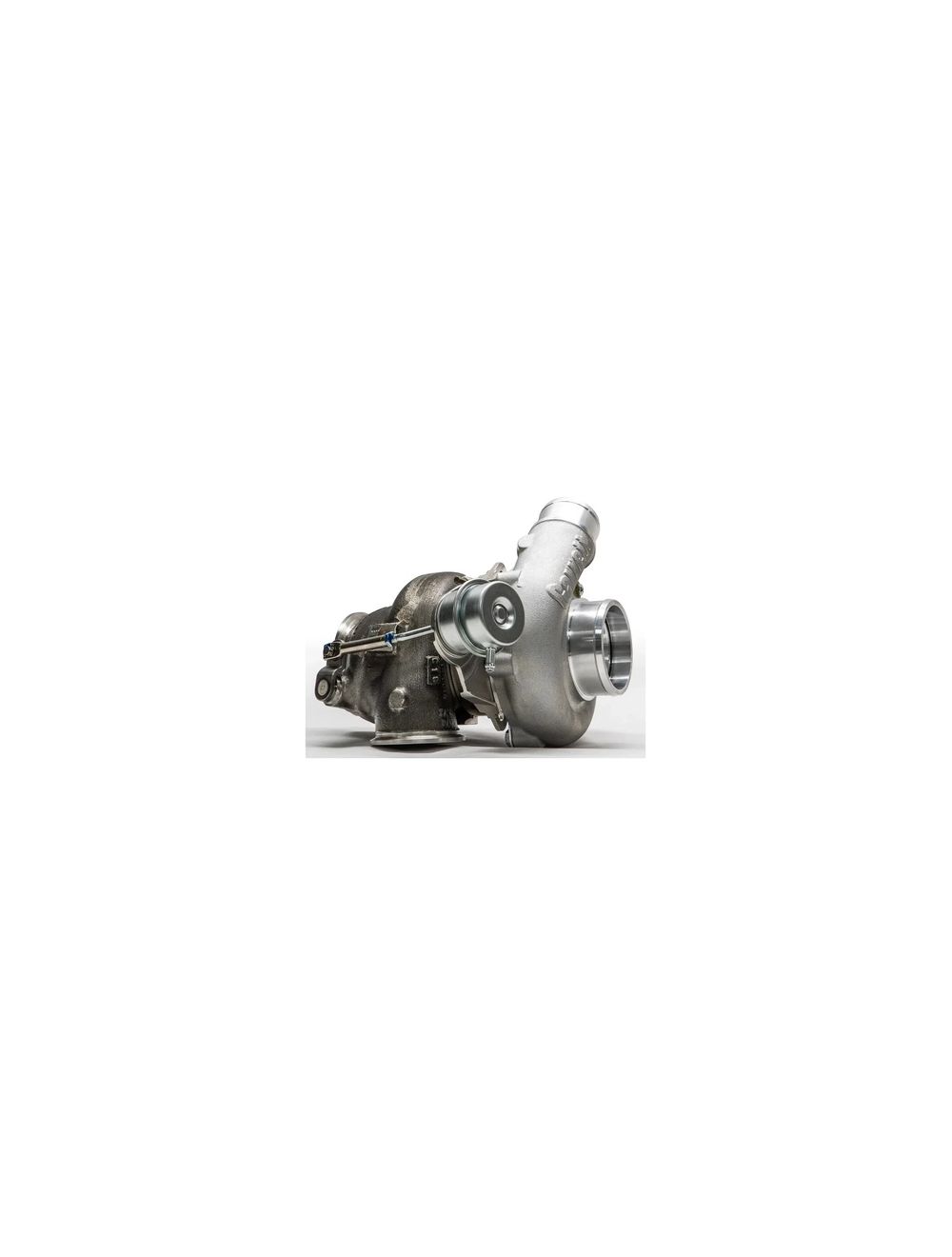

G25-660 Turbo Standard Rotation 54mm Comp Ind 0.72A/R For G-Series
| Manufacturer Part Number | 877895-5005S |
|---|---|
| Rotation | Standard |
| Type | Turbocharger |
| Vintage Part | No |
| Performance Part | Yes |
Not CARB Legal Not for sale or street use in CA & CARB statesDESCRIPTIONGarrett G-Series Turbochargers Feature The Latest Innovations In Turbocharger Technology.
Our Highest Flowing, Highest Efficiency Compressor And Turbine Aerodynamics To Date.
Countless Engineering Hours Have Been Spent To Create The Perfect Blend Of Efficiency And Performance In A Compact Package. Maximum Allowable Turbocharger Speed165KRPM.
The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure.
To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed.
Sensors Sold Separately. Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration.
The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower. FEATURES- G-Series Compressor Aerodynamics For Maximum HP- New Turbine Aero Provides Higher Flow And Efficiency- 54MM Compressor Wheel Inducer- 49MM Turbine Wheel Exducer- 79% Maximum Compressor Efficiency- 76% Maximum Turbine Efficiency- Mar-M Alloy Turbine Wheel Rated Up To 1050° C- 0.72 A/R With V-Band Turbine Housing Inlet Flange- Assembled And Calibrated With 0.5 Bar Actuator- High Efficiency Ceramic Ball Bearing Cartridge- Standard Rotation- Oil Restrictor And Water Fittings Included- Fully Machined Speed Sensor And Pressure PortsSPECSEngine CharacteristicsMin HP: 350Max HP: 660Min Displacement (L): 1.4Max Displacement (L): 3.0Compressor Wheel SpecsCompressor Exducer (mm): 67Compressor Wheel Mat: Forged Fully MachinedCompressor A/R: 0.70Turbine Wheel SpecsTurbine Inducer (mm): 54Turbine Exducer (mm): 49Turbine Trim: 84Turbine Wheel Mat: Mar-MTurbochargersProduct Line: G-SeriesFrame Size: 25Rotation: StandardCooling: Oil & Water CooledWastegate: InternalBearing: Ceramic Dual Ball BearingA/R: 0.72Turbine Inlet: V-BandTurbine Outlet: V-BandVariant: StandardCompressor Inducer (mm): 54Compressor Trim: 65Not CARB Legal Not for sale or street use in CA & CARB statesDESCRIPTIONGarrett G-Series Turbochargers Feature The Latest Innovations In Turbocharger Technology.
Our Highest Flowing, Highest Efficiency Compressor And Turbine Aerodynamics To Date.
Countless Engineering Hours Have Been Spent To Create The Perfect Blend Of Efficiency And Performance In A Compact Package. Maximum Allowable Turbocharger Speed165KRPM.
The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure.
To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed.
Sensors Sold Separately. Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration.
The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower. FEATURES- G-Series Compressor Aerodynamics For Maximum HP- New Turbine Aero Provides Higher Flow And Efficiency- 54MM Compressor Wheel Inducer- 49MM Turbine Wheel Exducer- 79% Maximum Compressor Efficiency- 76% Maximum Turbine Efficiency- Mar-M Alloy Turbine Wheel Rated Up To 1050° C- 0.72 A/R With V-Band Turbine Housing Inlet Flange- Assembled And Calibrated With 0.5 Bar Actuator- High Efficiency Ceramic Ball Bearing Cartridge- Standard Rotation- Oil Restrictor And Water Fittings Included- Fully Machined Speed Sensor And Pressure PortsSPECSEngine CharacteristicsMin HP: 350Max HP: 660Min Displacement (L): 1.4Max Displacement (L): 3.0Compressor Wheel SpecsCompressor Exducer (mm): 67Compressor Wheel Mat: Forged Fully MachinedCompressor A/R: 0.70Turbine Wheel SpecsTurbine Inducer (mm): 54Turbine Exducer (mm): 49Turbine Trim: 84Turbine Wheel Mat: Mar-MTurbochargersProduct Line: G-SeriesFrame Size: 25Rotation: StandardCooling: Oil & Water CooledWastegate: InternalBearing: Ceramic Dual Ball BearingA/R: 0.72Turbine Inlet: V-BandTurbine Outlet: V-BandVariant: StandardCompressor Inducer (mm): 54Compressor Trim: 65Not CARB Legal Not for sale or street use in CA & CARB statesDESCRIPTIONGarrett G-Series Turbochargers Feature The Latest Innovations In Turbocharger Technology.
Our Highest Flowing, Highest Efficiency Compressor And Turbine Aerodynamics To Date.
Countless Engineering Hours Have Been Spent To Create The Perfect Blend Of Efficiency And Performance In A Compact Package. Maximum Allowable Turbocharger Speed165KRPM.
The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure.
To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed.
Sensors Sold Separately. Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration.
The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower. FEATURES- G-Series Compressor Aerodynamics For Maximum HP- New Turbine Aero Provides Higher Flow And Efficiency- 54MM Compressor Wheel Inducer- 49MM Turbine Wheel Exducer- 79% Maximum Compressor Efficiency- 76% Maximum Turbine Efficiency- Mar-M Alloy Turbine Wheel Rated Up To 1050° C- 0.72 A/R With V-Band Turbine Housing Inlet Flange- Assembled And Calibrated With 0.5 Bar Actuator- High Efficiency Ceramic Ball Bearing Cartridge- Standard Rotation- Oil Restrictor And Water Fittings Included- Fully Machined Speed Sensor And Pressure PortsSPECSEngine CharacteristicsMin HP: 350Max HP: 660Min Displacement (L): 1.4Max Displacement (L): 3.0Compressor Wheel SpecsCompressor Exducer (mm): 67Compressor Wheel Mat: Forged Fully MachinedCompressor A/R: 0.70Turbine Wheel SpecsTurbine Inducer (mm): 54Turbine Exducer (mm): 49Turbine Trim: 84Turbine Wheel Mat: Mar-MTurbochargersProduct Line: G-SeriesFrame Size: 25Rotation: StandardCooling: Oil & Water CooledWastegate: InternalBearing: Ceramic Dual Ball BearingA/R: 0.72Turbine Inlet: V-BandTurbine Outlet: V-BandVariant: StandardCompressor Inducer (mm): 54Compressor Trim: 65We value your feedback, and we strive to do everything we can to
Packing and shipping
|
Packaging Regulation : |
Wooden Box / Carton |
|
Delivery time : |
7~14 days(About) |
|
Conditions : |
New and Genuine |
