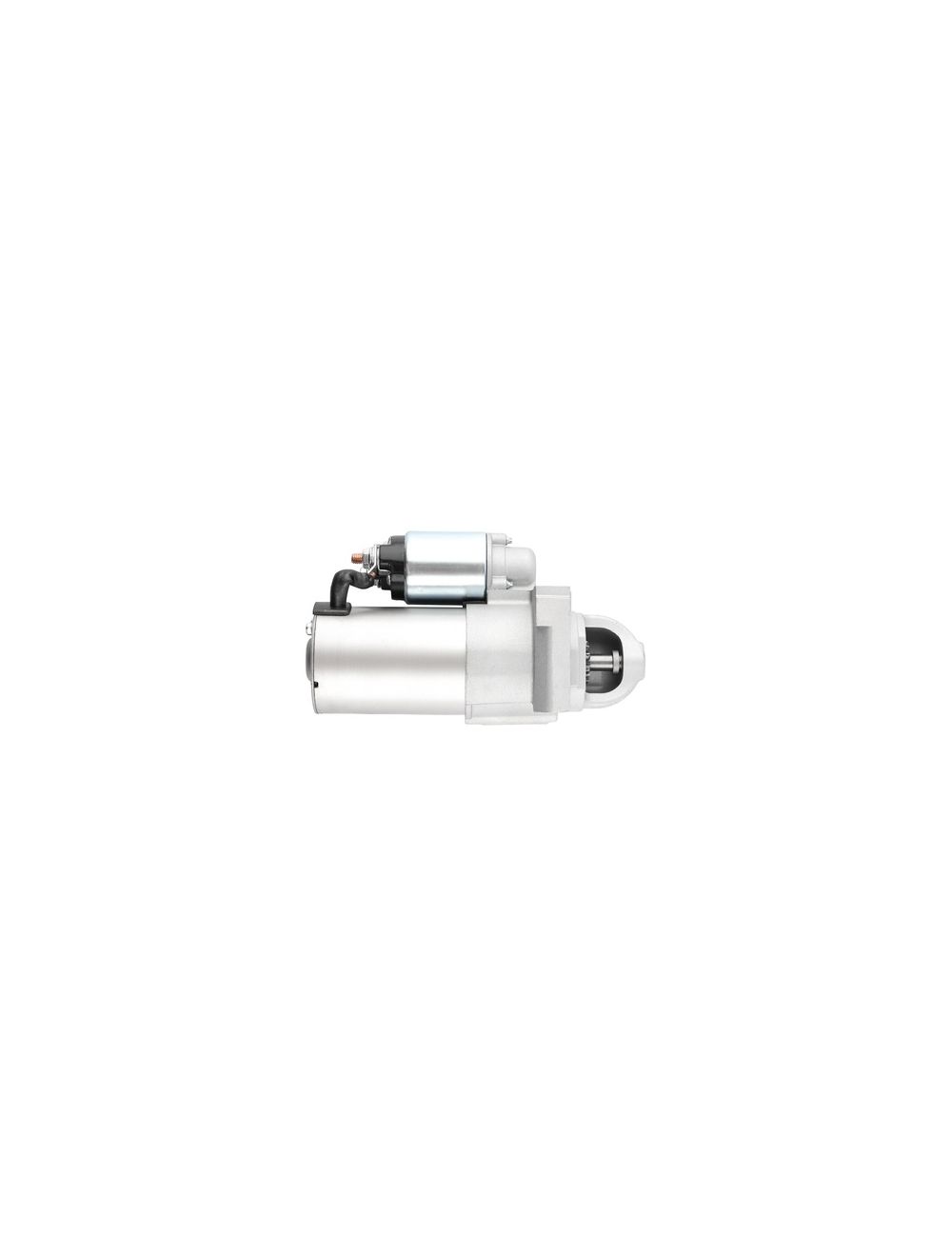

Starter For Cadillac Escalade ESV EXT 2006-2008 12588052 89017844 SDR0345 6757
| Features | Clockwise Rotation |
|---|---|
| Finish | HIGH PRODUCTION |
| Interchange Part Number | 12588052 89017844; SDR0345, 19168042, 2-2381-DR, 26637, 323-1637, 323-1656, 410-12291, 57-5198, 6757, 8000000, 8191680420, 8890178440, 89-01-7844, 89017844, 91-01-4669, PG260H, S-1511, S-1518 |
| Manufacturer Part Number | 12588052 89017844; SDR0345, 19168042, 2-2381-DR, 26637, 323-1637, 323-1656, 410-12291, 57-5198, 6757, 8000000, 8191680420, 8890178440, 89-01-7844, 89017844, 91-01-4669, PG260H, S-1511, S-1518 |
| Manufacturer Warranty | 3 Years |
| Material | Aluminum |
| Number of Pieces | 1 |
| Number of Teeth | 11 |
| OE Spec or Performance/Custom | OE Spec |
| OE/ Part Number | 12588052 89017844; SDR0345, 19168042, 2-2381-DR, 26637, 323-1637, 323-1656, 410-12291, 57-5198, 6757, 8000000, 8191680420, 8890178440, 89-01-7844, 89017844, 91-01-4669, PG260H, S-1511, S-1518 |
| Other Part Number | 113827,19168042,323-1637,323-1656,6757 |
| Placement on Vehicle | Front |
| Power Rating | 1.4 kW |
| Rotation | CW |
| Starter Type | PMGR |
| Type | Starter Motor |
| Voltage | 12 |
FFeatures:Built to strict quality control standards 100% factory tested..Consistent starting power with a high quality solenoid that properly engages the starter drive with the flywheel in your vehicle every time the ignition key is turned..High standards for components like wiring, brushes, insulation, bearings and coatings for consistent performance in all environmental conditions..High performance machining of the starter casing for ease of installation and solid joining of the starter housing and your vehicle's mounting surfacesHigh performance machining of the starter casing for ease of installation and solid joining of the starter housing and your vehicle's mounting surfacesSpecifications:Specifications:Material:AluminumMaterial:AluminumColor:SilverColor:SilverPlacement on Vehicle:FrontPlacement on Vehicle:FrontVoltage:12Voltage:12Rotation:CWRotation:CWTeeth:11:11Power Rating:1.4 KW:1.4 KWStarter Type:PMGR:PMGRPart NumbersPart Numbers:ARROWHEAD : SDR0345ARROWHEAD : SDR0345AC : 323-1637, 323-1656AC : 323-1637, 323-1656CARGO : 113827CARGO : 113827DELCO : 19168042, 8000000, 89017844DELCO : 19168042, 8000000, 89017844DIXIE : S-1511, S-1518DIXIE : S-1511, S-1518FAMILY : PG260HFAMILY : PG260HGENERAL MOTORS : 12588052, 89017844GENERAL MOTORS : 12588052, 89017844ISUZU : 8191680420, 8890178440ISUZU : 8191680420, 8890178440J & N : 410-12291J & N : 410-12291LESTER : 6757LESTER : 6757MINNPAR : 57-5198MINNPAR : 57-5198PIC : 140-6034C, 140-6034DPIC : 140-6034C, 140-6034DREMY LIGHT DUTY : 26637REMY LIGHT DUTY : 26637SAAB : 89-01-7844SAAB : 89-01-7844USA INDUSTRIES : 6757USA INDUSTRIES : 6757WAI : 2-2381-DRWAI : 2-2381-DRWILSON NEW : 91-01-4669WILSON NEW : 91-01-4669WILSON : 91-01-4669WILSON : 91-01-4669Delco : 80000008000239 323-1637 19168042323-1656Delco : 80000008000239 323-1637 19168042323-1656Napa : 4N5122Napa : 4N5122Wilson : 91-01-4669N91-01-4669Wilson : 91-01-4669N91-01-4669GMC : 12588052GMC : 12588052Saab : 89-01-7844Saab : 89-01-7844FitmentFitment:CADILLAC Auto and Light Truck ESCALADE 2006 6.0L(364) V8CADILLAC Auto and Light Truck ESCALADE 2007-2008 6.2L(378) V8CHEVROLET Auto and Light Truck AVALANCHE 2007-2008 6.0L(364) V8CHEVROLET Auto and Light Truck C / K / R / V SERIES PICKUPS 2006-2008 6.0L(364) V8CHEVROLET Auto and Light Truck EXPRESS VANS 2006-2008 6.0L(364) V8CHEVROLET Auto and Light Truck SSR 2006 6.0L(364) V8CHEVROLET Auto and Light Truck SUBURBAN 2006-2008 6.0L(364) V8CHEVROLET Auto and Light Truck TAHOE 2008 6.0L(364) V8CHEVROLET Auto and Light Truck TRAILBLAZER 2006-2008 6.0L(364) V8GMC Auto and Light Truck C / K / R / V SERIES PICKUPS 2006-2008 6.0L(364) V8GMC Auto and Light Truck C / K / R / V SERIES PICKUPS 2007-2008 6.2L(378) V8GMC Auto and Light Truck SAVANA VANS 2006-2008 6.0L(364) V8GMC Auto and Light Truck YUKON 2006-2011 6.0L(364) V8GMC Auto and Light Truck YUKON 2007-2008 6.2L(378) V8GMC Auto and Light Truck YUKON XL 2006-2008 6.0L(364) V8GMC Auto and Light Truck YUKON XL 2007-2008 6.2L(378) V8HUMMER Auto and Light Truck H1 2006 6.6L(400) V8 (Diesel)HUMMER Auto and Light Truck H2 2006-2007 6.0L(364) V8HUMMER Auto and Light Truck H2 2008 6.2L(378) V8SAAB Auto and Light Truck 9-7X 2008-2009 6.0LPackage include:Package include:1 x StarterAttention:How to Install a Car Starter? 1.
Disconnect the battery.2.
Jack up the vehicle if need be.3.
Locate the starter.4.
Disconnect the wiring to the solenoid.5.
Remove the starter retaining bolts then the starter.6.
Compare the new starter to the old one.
Slide the starter into place.7.
Insert the starter retainer bolts.8.
Connect the wiring to the starter solenoid.9.
Reconnect the battery.10.
Listen to the vehicle as you attempt to start it.11.
Ensure the battery terminals are clean and secure. Charge your vehicle’s battery.12.
Check to see the starter solenoid is bad. Note:Starter Fault Check:The starter often has failures and phenomena that cannot rotate or rotate slowly.
In this case, check the following aspects:1.
The battery has no electricity or the electricity is weak, so the starter cannot rotate or rotate slowly.2.
The starter thread is loose or off, and the switch or adsorption switch fails.3.
The brush is worn out or the brush surface is not correct, and the spring is weak, resulting in poor contact of the rectifier.4.
Excitation coil or armature coil is short-circuited or disconnected.5.
The rectifier is fouled and the mica sheet is protruding, causing poor contact between the brush and the rectifier.
