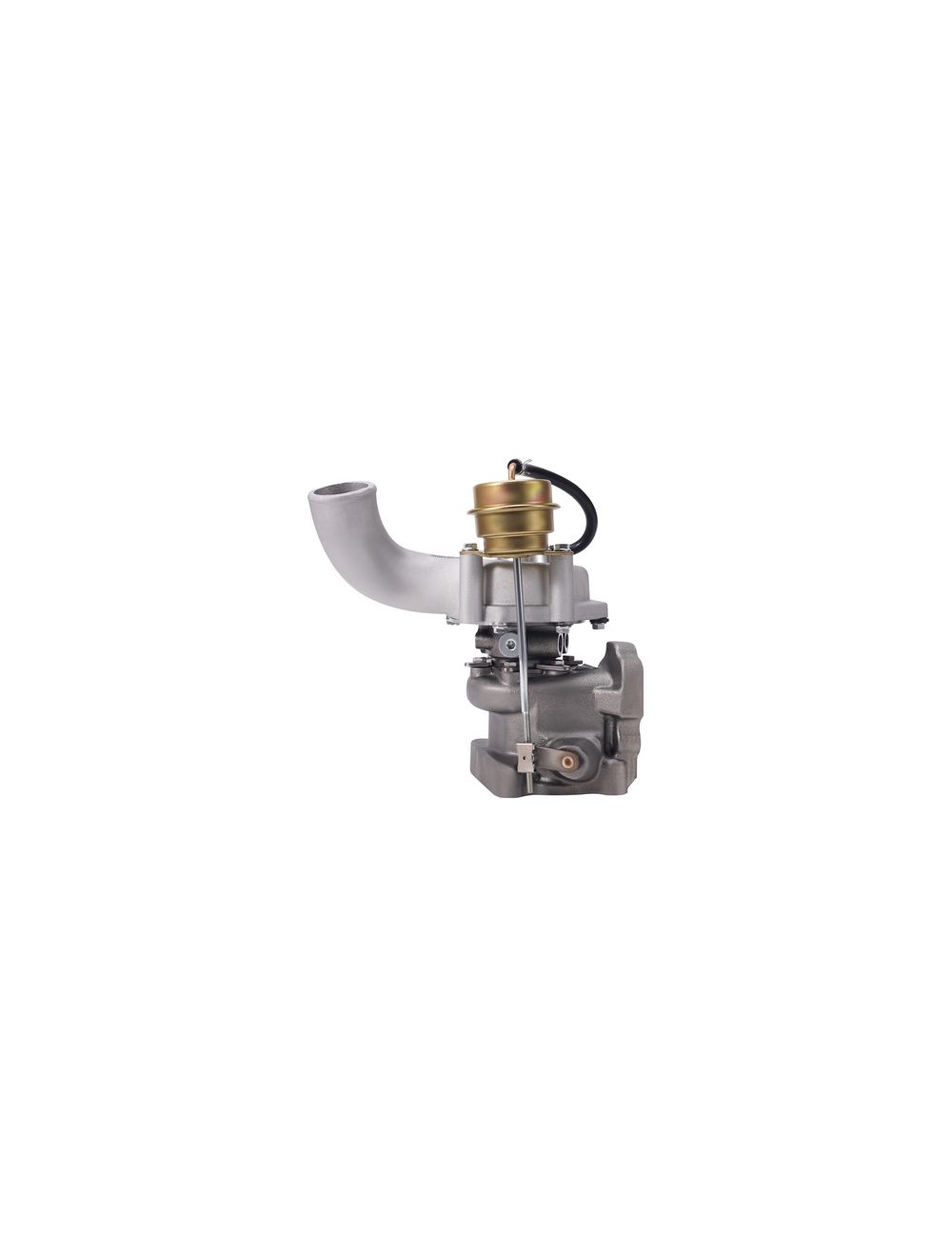

Billet Twin Turbo for Audi RS4 A4 V6 S4 A6 2.7L K04 AZR ASJ 1997-2005 K04-025/26
| Application 1 | For Audi RS4 V6 Biturbo with ASJ/AZR Engine 2000-05 Left Side, For Audi A4 V6 Bi-turbo with AZR/ASJ Engine 2000-05 Left Side |
|---|---|
| Application 2 | For the car model below need modification:, For Audi A6 with AJK, ARE, BES, AGB Engine 1997-01, For Audi A6 Allroad with AJK, ARE, BES, AGB Engine 1997-, For Audi S4 with AJK, ARE, BES, AGB Engine 1997-01 |
| Bearing Type | Floating Bearing |
| Compressor Wheel | Flank Milled Billet Compressor Wheels, recision CNC machined from forged billet aluminum |
| Cooling Type | Water Cooling |
| Engine Code | ASJ / AZR |
| Features | Individual |
| Hosepower | Up to 380HP |
| Interchange Part Number | 53049880025, 53049700025, 53039880016, 53039700016 , 078145701M, 078145703M |
| Manufacturer Part Number | SFEPZ5 |
| Manufacturer Warranty | 2 Years |
| Model | K04-025 |
| OE/ Part Number | 53049880025, 5304-988-0025, 5304 988 0025, 53049700025, 5304-970-0025, 5304 970 0025, 078145701M, 078145703M, 078145703MX, 078145703MV, 53039880016, 5303-988-0016, 5303 988 0016, 53039700016, 5303-970-0016, 5303 970 0016, 078145701S, 078145701R, 078145701H, 078145701L, 078145703D, 078145703H, 078145703L, 078145703R, 078145703S, 078145703C, 078145703B, 53049880026, 5304-988-0026, 5304 988 0026, 53049700026, 5304-970-0026, 5304 970 0026, 078145702M, 078145704M, 078145704MX, 078145704MV, 53039880017, 5303-988-0017, 5303 988 0017, 53039700017, 5303-970-0017, 5303 970 0017, 078145704D, 078145704L, 078145704S, 078145704R, 078145704H, 078145702H, 078145702L, 078145702R, 078145702S, 078145704B, 078145704C, |
| Placement on Vehicle | Left, Right, Front |
| Turbo Model | K04-025 |
| Type | Turbocharger |
| Universal Fitment | No |
ApplicationsApplicationsApplicationsFor Audi RS4 V6 Biturbo with ASJ/AZR Engine 2000-05For Audi A4 V6 Bi-turbo with AZR/ASJ Engine 2000-05For Audi RS4 V6 Biturbo with ASJ/AZR Engine 2000-05For Audi A4 V6 Bi-turbo with AZR/ASJ Engine 2000-05Note:For the car model below need modification:For Audi A6 with AJK, ARE, BES, AGB Engine 1997-01For Audi A6 Allroad with AJK, ARE, BES, AGB Engine 1997-For Audi S4 with AJK, ARE, BES, AGB Engine 1997-01Note:For the car model below need modification:For Audi A6 with AJK, ARE, BES, AGB Engine 1997-01For Audi A6 Allroad with AJK, ARE, BES, AGB Engine 1997-For Audi S4 with AJK, ARE, BES, AGB Engine 1997-01Part Number & NumberPart Number & NumberPart Number & Number53049880025, 5304-988-0025, 5304 988 0025,53049700025, 5304-970-0025, 5304 970 0025,078145701M, 078145703M,078145703MX, 078145703MV53049880025, 5304-988-0025, 5304 988 0025,53049700025, 5304-970-0025, 5304 970 0025,078145701M, 078145703M,078145703MX, 078145703MV53049880026, 5304-988-0026, 5304 988 0026,53049700026, 5304-970-0026, 5304 970 0026,078145702M, 078145704M,078145704MX, 078145704MV53049880026, 5304-988-0026, 5304 988 0026,53049700026, 5304-970-0026, 5304 970 0026,078145702M, 078145704M,078145704MX, 078145704MVNote:Note:Note:For the OE/PN number below need modification:53039880016, 5303-988-0016, 5303 988 0016,53039700016, 5303-970-0016, 5303 970 0016,078145701S, 078145701R, 078145701H, 078145701L,078145703D, 078145703H, 078145703L,078145703R, 078145703S, 078145703C, 078145703BFor the OE/PN number below need modification:53039880016, 5303-988-0016, 5303 988 0016,53039700016, 5303-970-0016, 5303 970 0016,078145701S, 078145701R, 078145701H, 078145701L,078145703D, 078145703H, 078145703L,078145703R, 078145703S, 078145703C, 078145703B53039880017, 5303-988-0017, 5303 988 0017,53039700017, 5303-970-0017, 5303 970 0017,078145704D, 078145704L, 078145704S,078145704R, 078145704H, 078145702H,078145702L, 078145702R, 078145702S,078145704B, 078145704C,53039880017, 5303-988-0017, 5303 988 0017,53039700017, 5303-970-0017, 5303 970 0017,078145704D, 078145704L, 078145704S,078145704R, 078145704H, 078145702H,078145702L, 078145702R, 078145702S,078145704B, 078145704C,Specification:Specification:Specification:Turbo: Model: K04-025 &K04-026Engine: ASJ / AZRCooling Type: Water CoolingBearing Type: Floating BearingHosepower: 280KW/380PSCondition: 100% brand newAccessories: You will get exactly as shown in the picture abovePakage Weight: 7000g*2Pakage Size: 29.7*25.8*32.8 cm*2Turbo: Model: K04-025 &K04-026Engine: ASJ / AZRCooling Type: Water CoolingBearing Type: Floating BearingHosepower: 280KW/380PSCondition: 100% brand newAccessories: You will get exactly as shown in the picture abovePakage Weight: 7000g*2Pakage Size: 29.7*25.8*32.8 cm*2Feature:Feature:Feature:1.
Silicon-Molybdenum Turbine HousingEngineered for high-temperature resistance up to 850℃, highly stable and ductile, resistant to corrosion and cracking, enhancing both durability and reliability.1.
Silicon-Molybdenum Turbine HousingEngineered for high-temperature resistance up to 850℃, highly stable and ductile, resistant to corrosion and cracking, enhancing both durability and reliability.2.
K419 Alloy Turbine WheelCapable of withstanding high-temperatures up to 1000℃, efficiently converting engine exhaust gases into kinetic energy while resisting thermal breakdown for smooth and reliable operation.2.
K419 Alloy Turbine WheelCapable of withstanding high-temperatures up to 1000℃, efficiently converting engine exhaust gases into kinetic energy while resisting thermal breakdown for smooth and reliable operation.3.
Flank Milled Billet Compressor WheelsPrecision CNC machined from forged billet aluminum, providing high efficiency, fast response, lower fuel consumption, and smooth operation.3.
Flank Milled Billet Compressor WheelsPrecision CNC machined from forged billet aluminum, providing high efficiency, fast response, lower fuel consumption, and smooth operation. Package IncludedPackage IncludedPackage Included2x Turbocharger8x Oil/Water Port Gaskets2x Flange Gasket2x Manual2x Sticker2x Turbocharger8x Oil/Water Port Gaskets2x Flange Gasket2x Manual2x StickerImportant NoticeImportant NoticeImportant Notice* This K04-025/026 turbo can replace the k03-016/017 turbocharger, but you may need replace the intake hose of the cold side.* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.* Make sure the oil drain line is lower than the turbo itself.* Gasoline car must install a water cooling device to avoid overheating.* Ensure exhaust outlet are well sealed by welding* The degree of modification of the universal turbo depends on your individual vehicle. Professional installation is highly recommended.* This Turbo is not vehicle specific.
Please check the specifications and verify compatibility prior to placing your order.* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g.
insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!* This K04-025/026 turbo can replace the k03-016/017 turbocharger, but you may need replace the intake hose of the cold side.* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.* Make sure the oil drain line is lower than the turbo itself.* Gasoline car must install a water cooling device to avoid overheating.* Ensure exhaust outlet are well sealed by welding* The degree of modification of the universal turbo depends on your individual vehicle. Professional installation is highly recommended.* This Turbo is not vehicle specific.
Please check the specifications and verify compatibility prior to placing your order.* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g.
insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)! Left Side Billet Turbo for Audi RS4 A4 V6 S4 A6 2.7L K04 K04-025 AZR ASJ 380PSRight Side Billet Turbo for Audi S4 A6 RS4 A4 V6 2.7L K04 K04-026 380PS AZR ASJ2x Air Suspension Spring Bags For Audi A6 C5 4B 1997-2004
Packing and shipping
|
Packaging Regulation : |
Wooden Box / Carton |
|
Delivery time : |
7~14 days(About) |
|
Conditions : |
New and Genuine |
