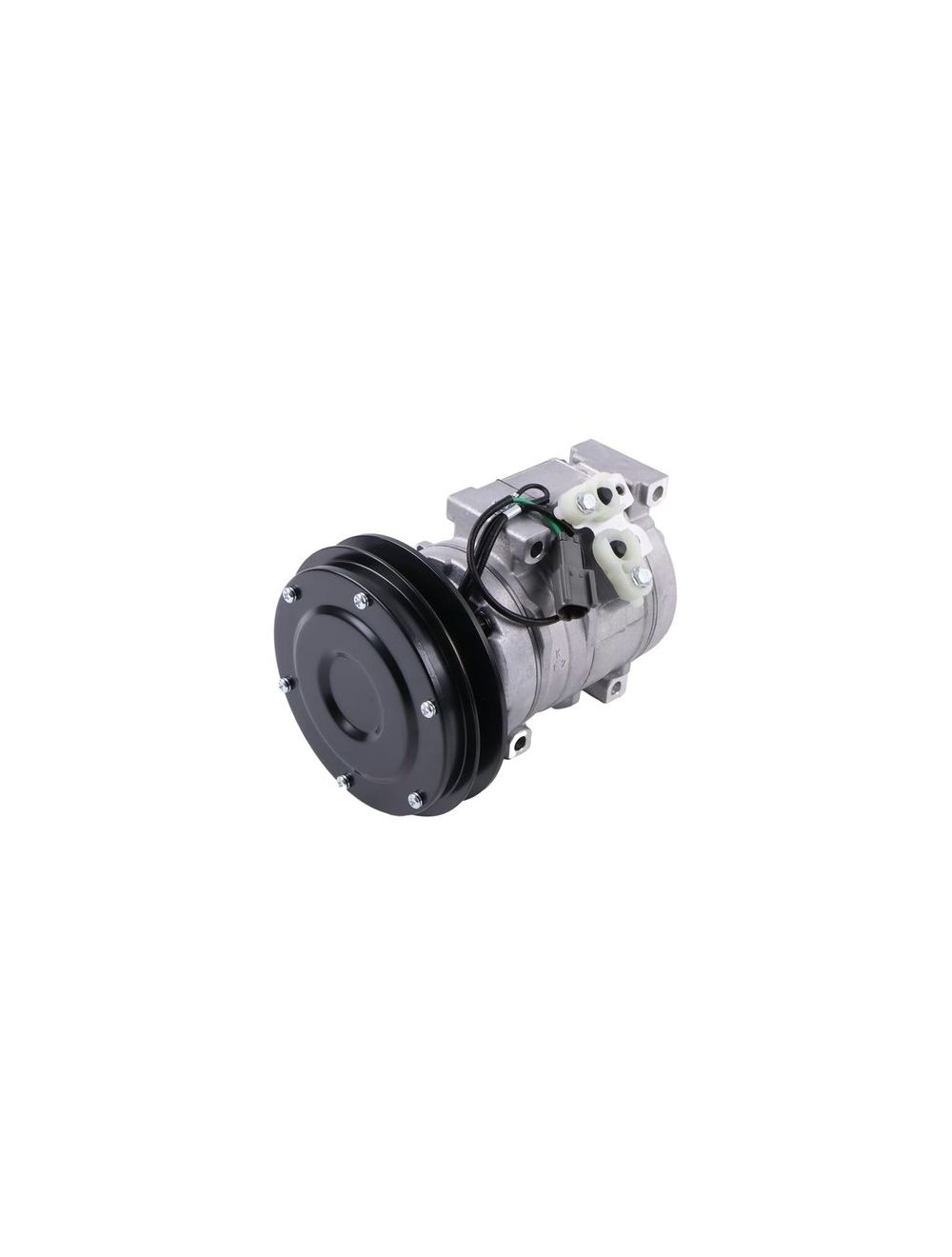

10PA15C 24V 20Y-979-3111 421-07-31221 A/C AC Compressor For Komatsu PC160 PC180 PC200 PC220 PC290 PC340 PC380 PC450 PC600 PC750 PW130 PW150 Excavator D65EX D85EX D85PX D155AX-5 D275AX-5E0 Bulldozer

Product Information:

Part Type: Air Conditioning Compressor

Fuel Type: Diesel

Material: Metal

Item Condition: Aftermarket Part

Way of Use: Direct Replacement

Compressor Type: 10PA15C

Head Type: N/A

Oil Type: ND8 Pag Oil

Clutch Diameter: 152mm, 6"

Voltage: 24

Grooves: 1

Belt Width: B, 5/8"

Coil Position: 12 O'Clock

Gauge Line: 2.850", 72.39mm

Replaces OEM: 20Y-979-3111, 20Y9793111, 421-07-31221

Application:

For Komatsu Excavator:

PC160, PC1600, PC1600SP, PC180,

PC200, PC200LL, PC200SC, PC210, PC220, PC220LL,

PC230, PC240, PC250, PC270, PC290,

PC340, PC380, PC450, PC600, PC650, PC650SE,

PC710, PC710SE, PC750, PC750SE, PC800, PC800SE,

PW130ES, PW150ES, PW170ES

For Komatsu Bulldozer:

D31EX-21A-M, D31PX-21A-M, D31PX-21, D31EX-21,

D37PX-21, D37EX-21, D37PX-21A-M, D37EX-21A-M,

D39EX-21, D39EX-21A-M, D39PX-21A-M, D39PX-21,

D85A-21-E, D85P-21-EP, D85P-21-E, D85A-21B, D85A-21B-ER

WarrantyPeriod: 6 months. If there is any problem during this period, repair or replacement service will be provided.

Basic Requirements when servicing an A/C system:

1. The Accumulator or Filter Drier should always be replaced when the Air Conditioning System is opened.

For warranty Purposes buyer must show evidence of receiver/drier replacement.

In some vehicles the drier comes attached to the condenser so it must replaced as well.

2. A/C system must be clean and free of debris and contaminants. In most cases components can be flushed; however in some instances it may be necessary to replace the condenser or other items.

3. Orifice tube must be replaced; expansion valve must be inspected and replaced if dirty or defective.

4. Correct amount and type of oil must be used. Please refer to the OE manufacturer for this information.

5. Prior to refrigerant charging, full vacuum must be done for a minimum of 45 minutes. In humid climates or during cooler days, this time should be increased to effectively remove air and boil off moisture.

6. The Orifice Tube, if equipped, should always be replaced and the Expansion Valve, if equipped, should at least be inspected for proper operation if not replaced.

7. As shipping limit, we put few oil before shippment, so when you get the compressor, please pour out all the compressor oil, and imput original oil.

Attention:

Reliability - The parts are excellent and fast after-sales service.

Parts Updates - According to the original factory specifications manufactured, tested.

CustomerFirst - We committed to provid you good buying experience.

Terms of Sales - The amount we charged only covers the product, shipping and handling. Any custom or import tax is Buyer's responsibility.
