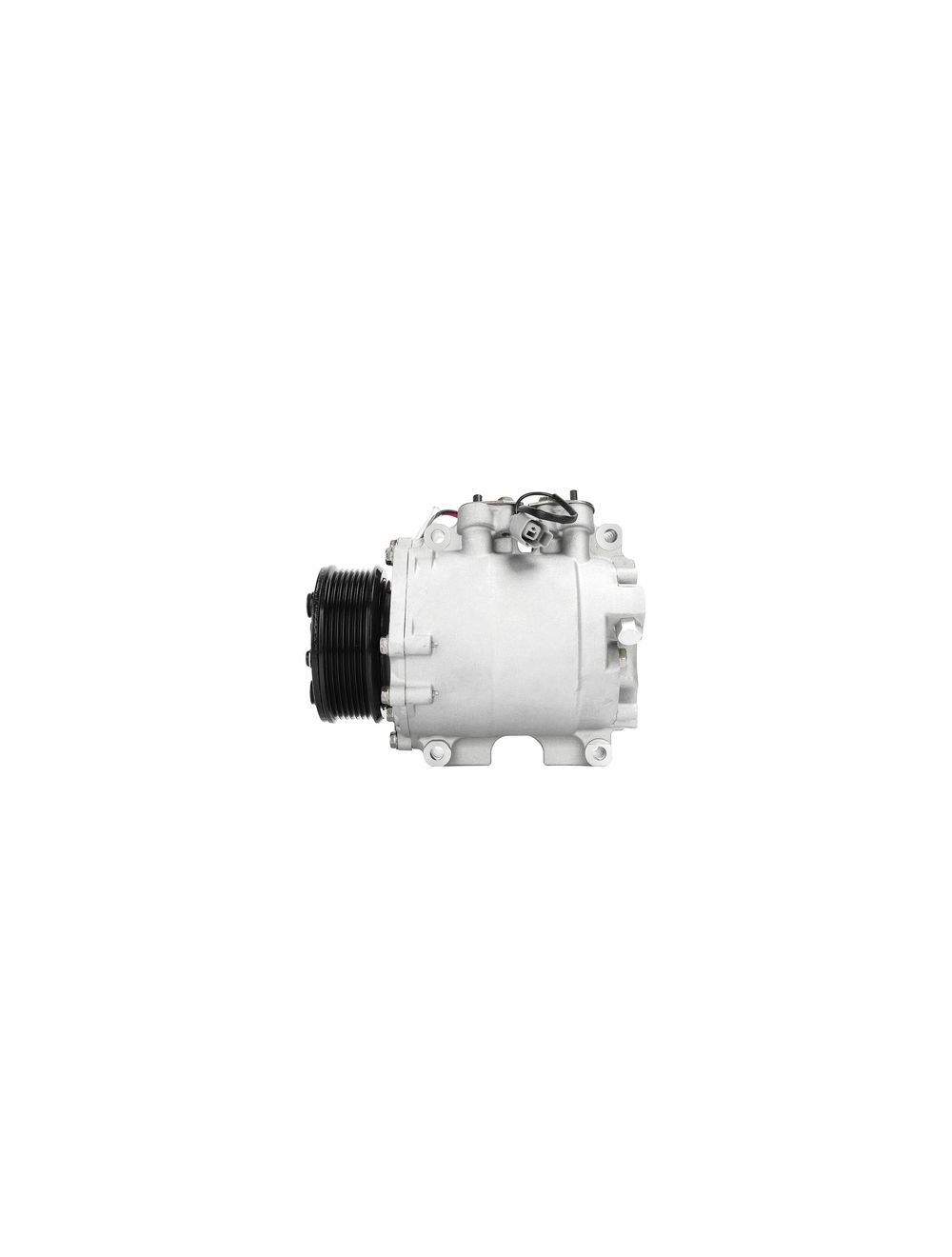

AC A/C Compressor CO 10663 for 2002 2003 2004 2005 2006 Honda CR-V CRV 2.4L l4

Description:Description:Description:Description:● A/C compressor is to meet or exceed specifications.● A/C compressor is to meet or exceed specifications.● A/C compressor is to meet or exceed specifications.● All compressors are built using the latest compressor technology available today and using strictprocesses.● All compressors are built using the latest compressor technology available today and using strictprocesses.● All compressors are built using the latest compressor technology available today and using strictprocesses.● New bearing, new seals and gaskets, new coil, lathed clutch assembly.● New bearing, new seals and gaskets, new coil, lathed clutch assembly.● New bearing, new seals and gaskets, new coil, lathed clutch assembly.● Tested for noise, vibration, durability, vacuum decay, and pressure decay to ensure no leaks.● Tested for noise, vibration, durability, vacuum decay, and pressure decay to ensure no leaks.● Tested for noise, vibration, durability, vacuum decay, and pressure decay to ensure no leaks.● The function of air compressor is to compress air, not to cool air.

A product that has no signs of leakage, abnormal sound and has sufficient pressure can be certificated as a qualified product.● The function of air compressor is to compress air, not to cool air.

A product that has no signs of leakage, abnormal sound and has sufficient pressure can be certificated as a qualified product. Features:Features:Fitment:02-06 CRVFitment:02-06 CRVFitment:02-06 CRVInterchange Part Number:CO 10663AC,38810PNB006,38870PNB006,10345240Interchange Part Number:CO 10663AC,38810PNB006,38870PNB006,10345240Placement on Vehicle:Placement on Vehicle:FrontPulley Grooves : 7Simple to installationAutomatic adjustmentAttention Please:Attention Please:Attention Please:Be sure to clean the air conditioning system before installation, otherwise it will cause compression broken. Be sure to clean the air conditioning system before installation, otherwise it will cause compression broken. Be sure to clean the air conditioning system before installation, otherwise it will cause compression broken.1. Remove compressor, receiver drier or accumulator, orifice tube or expansion valve.1. Remove compressor, receiver drier or accumulator, orifice tube or expansion valve.2. Flush the condenser and evaporator using NON-OIL BASED A/C flush.

On expansion valve systems.

The valve must be removed before the evaporator can be flushed.

Flushed condensers from outlet to inlet and evaporators from inlet to outlet.2. Flush the condenser and evaporator using NON-OIL BASED A/C flush.

On expansion valve systems.

The valve must be removed before the evaporator can be flushed.

Flushed condensers from outlet to inlet and evaporators from inlet to outlet.3. Drain all the oil from the new compressor and dispose of according to local, state and federal laws. NOTE:if you compressor has a drain plug you will need to open it up and drain what oil is in there too.3. Drain all the oil from the new compressor and dispose of according to local, state and federal laws. NOTE:if you compressor has a drain plug you will need to open it up and drain what oil is in there too.4. Install half oil charge into the compressor and the remainder throughout the system.

Turn compressor shaft 8-10 full revolutions to insure front seal and other internal parts are lubricated.4. Install half oil charge into the compressor and the remainder throughout the system.

Turn compressor shaft 8-10 full revolutions to insure front seal and other internal parts are lubricated.5. Install new receiver drier or accumulator and new orifice tube or expansion valve.5. Install new receiver drier or accumulator and new orifice tube or expansion valve.6. Evacuate the A/C system for a minimum of one hour.6. Evacuate the A/C system for a minimum of one hour.7. After evacuation install half the refrigerant charge and let the system set for 1 minute.

This will allow the refrigerant to pick up oil and spread more evenly throughout the system.7. After evacuation install half the refrigerant charge and let the system set for 1 minute.

This will allow the refrigerant to pick up oil and spread more evenly throughout the system.8. Add the remaining charge of refrigerant as called for by the manufacture.8. Add the remaining charge of refrigerant as called for by the manufacture.
